Smart DIP Solution

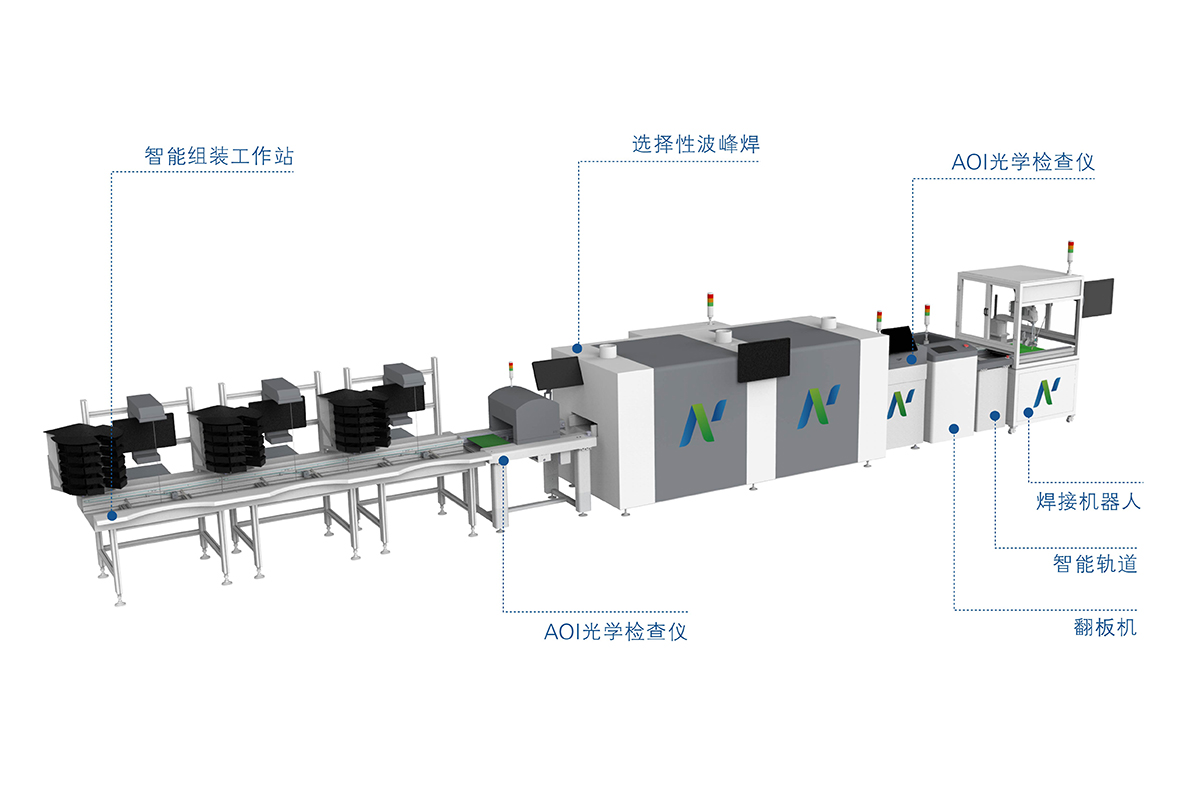

The whole system realizes the automation and closed-loop management of the dip line device. The system includes smart assembly workstation, dip AOI: error-proof and anti-detection for the components on the circuit board, selective wave soldering: high precision, high reliability soldering, smart AOI: to achieve the effect check after soldering, soldering robot: by obtaining AOI to detect the soldering effect information, the device automatically judges the soldering spot position and parameter information, and supplements the selective wave soldering. In the whole pipeline process, real-time information of the board is obtained through the smart track connection.
